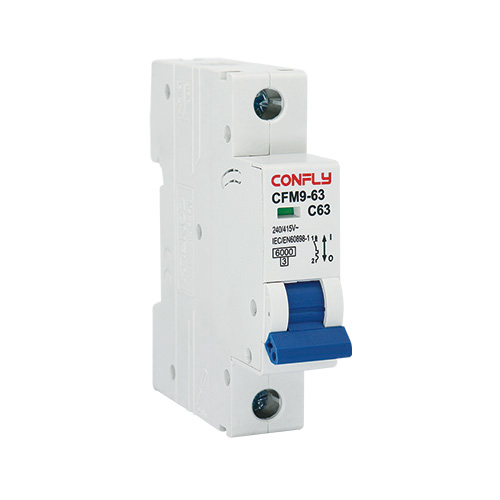

Miniature circuit breakers are mechanical switching devices able to switch, conductand switch-off the current under normal conditions, and able to switch, conduct andautomatically switch-off the current under abnormal circuit conditions, such as shortcircuit.
Miniature circuit breakers are suitable for protection from overload and short circuit
Method of connection: for AC MCBs optional, the input and output terminals can bechanged.
● Standard: IEC60898

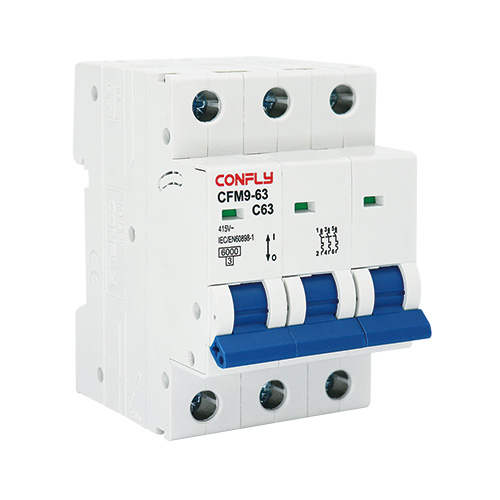

● Pole No.: 1P, 2P, 3P, 4P
● Rated voltage: 240/415V AC
● Rated current(A): 1,2,3,4,6,10,13,16,20,25,32,40,50,63
● Tripping curve: B, C, D
● Rated short-circuit capacity(Icn): 6kA
● Rated frequency: 50/60Hz
● Rated impulse withstand voltage: 4kV
● Electro-mechanicla endurance: 4000
● Contact position indication
● Connection terminal:
Screw terminal
Pillar terminal with clamp
● Connection capacity: Rigid conductor up to 25mm2
● Fastening torque: 2.0Nm
● Installation:
On symmetrical DIN rail 35mm
Panel mounting
