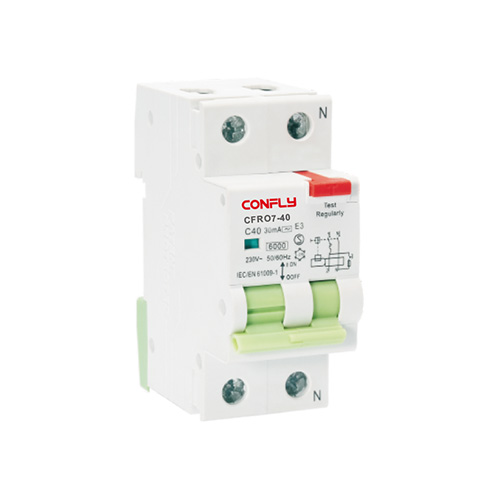

CFRO7-40 RCBO-CONFLY

CFRO7-40 RCBO

Print This Page

E-Mail To Us: conflyelectric@conflyelectric.com

Fax: +86 - 577 - 6158 6625

PDF File Download: CFRO7-40

Construction and Feature

● Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.
● Provides complementary protection against direct contact by human body.
● Effectively protects electric equipment against insulating failure.
● Provides comprehensive protection to household and commercial distribution systems.

Technical Data

● Standard: IEC61009
● Residual current characteristics: AC,A
● Pole No.: 1P+N
● Tripping curve: B,C
● Rated short-circuit capacity:6kA
● Rated current (A): 6,10,16,20,25,32,40
● Rated voltage: 240V AC
● Rated frequency: 50/60Hz
● Rated residual operating current(mA):30,100,300
● Tripping duration: instantaneous≤0.1s
● Electro-mechanical endurance: 4000 cycles
● Connection terminal: piliar terminal with clamp
● Connection capacity:
Flexible conductor 10mm²
Rigid conductor 16mm²
● Installation:
On symmetrical DIN rail 35mm

Wiring Diagram

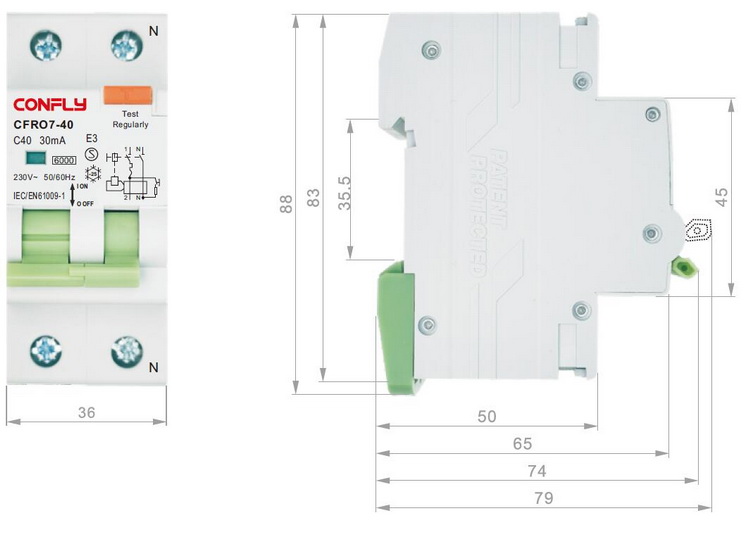

Overall & Installation Dimensions
