● Suitable to control wide range lightings include incandescent lamp, halogen lamp and fluorescent lamp.
● Simple time setting.
● With time delay.
● Extremely compact and modular size.

● Rated voltage: 230V~
● Rated frequency: 50Hz
● Consumption: 1VA
● Contact capacity: 16A 250V AC(COSφ=1)
● Electrical endurance: 10⁵ cycles
● Mechanical endurance: 10⁷ cycles
● Ambient temperature: -20°C~+50°C
● Connection terminal: pillar terminal with clamp
● Installation:
  On symmetrical DIN rail
  Panel mounting

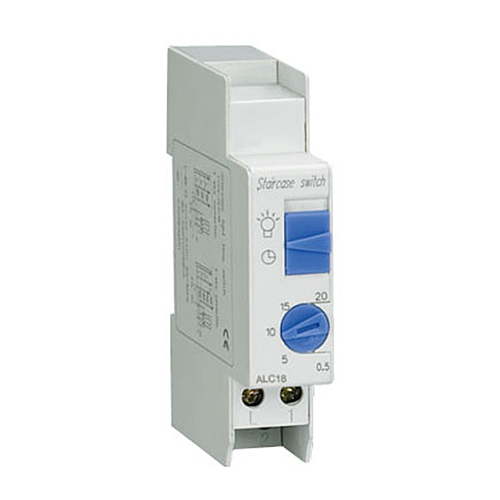

ALCT8 Timer
● Type: electronic time delay
● Time setting range: 20minutes
● Min. setting interval: 5minutes
● Slide switch: manual/automatic
● Controlled lighting load:
   Incandescent lamp: 2300W
   Halogen lamp: 2300W
   Fluorescent lamp load with electronic ballast: 800W
● Switching: immediate reset

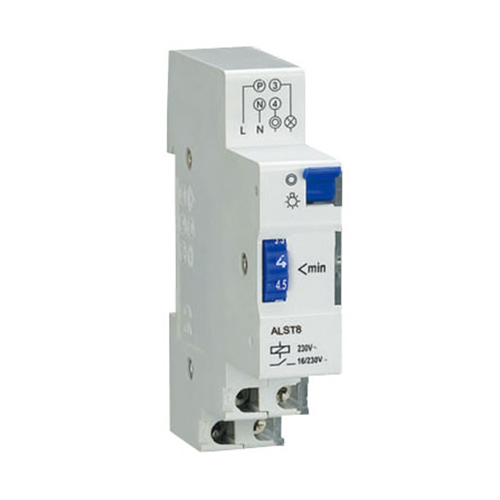

ALST8 Timer
● Type: electromechanical type with time delay
● Time setting range: 7 minutes
● Min. setting interval: 30 seconds
● Toggle switch: manual/automatic
● Controlled lighting load:
   Incandescent lamp: 2300W
   Halogen lamp: 2300W
● Fluorescent lamp:
   Uncompensated 2300W
   Compensated in series: 2300W
   Compensated in parallel: 1300W
● Switching: reset after 30s
