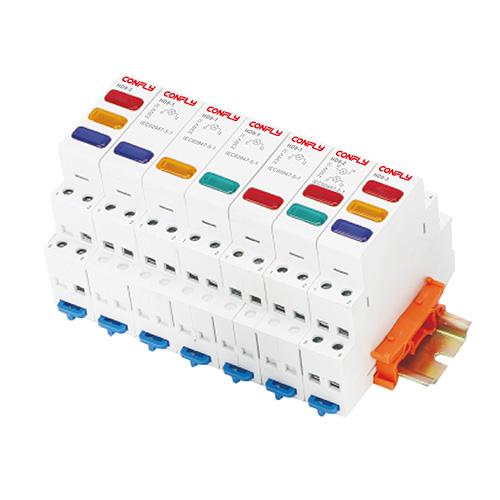

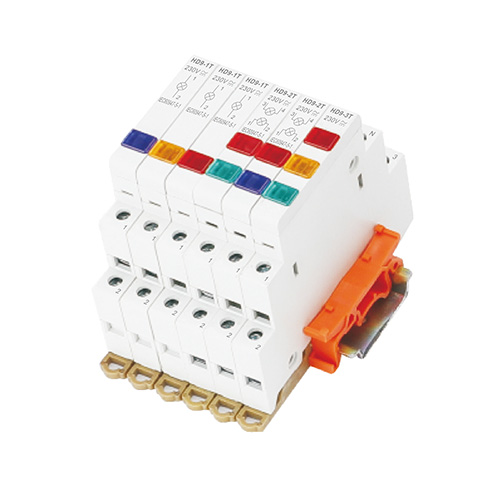

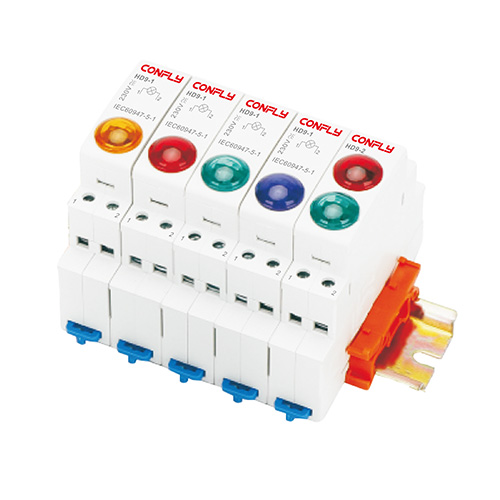

The Modular Signal Lamp is applicable to circuit with rated voltage 230V AC/DC and frequency 50/60Hz for visual indication and signaling.

● Low service duration, minimum power consumption
● Compact design in modular size
● Easy installation

● Standard: IEC60947-5-1
● Illumination: LED
● Rated voltage: 24V AC/DC, 230V AC/DC
● Rated frequency: 50/60Hz
● Colour
   1P: red, yellow, blue, green, white
   2P: red+green
   3P with rectangular lamp: red+yellow+green
   For 2P and 3P: other colours can be customized
● Continual working life: 30,000 hours
● Connection terminal: pillar terminal with clamp
● Connection capacity: rigid conductor 2.5mm²
● Installation:
   On symmetrical DIN rail
