Modular Contactor

Other Modular Device

Print This Page

E-Mail To Us: conflyelectric@conflyelectric.com

Fax: +86 - 577 - 6158 6625

PDF File Download: BH8 Modular contactor
Application

The breadth of the BCH8 contactor range satisfies the most application cases. BCH8 contactors can be combined with auxiliary control, protection and indication functions. The contactors are produced according to lEC61095(GB/T17885).

BCH8 contactors can be used to remote control applications in alternative networks:
lighting, heating, ventilation, roller blinds, sanitary hot water
mechanical ventilation svstems, etc

Specification

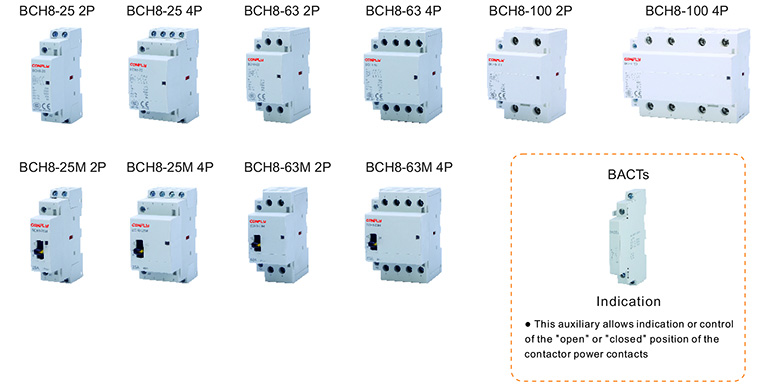

BCH8 contactors are available in two versions:
● Contactors without manually-operated

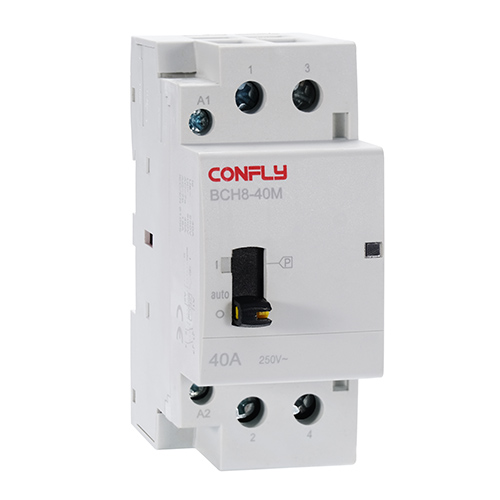

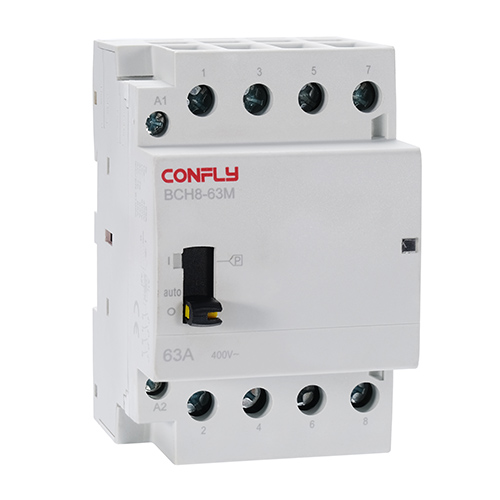

● Contactors with manually-operated.

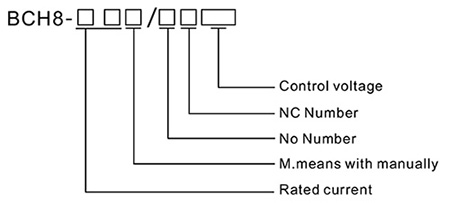

Model and meaning

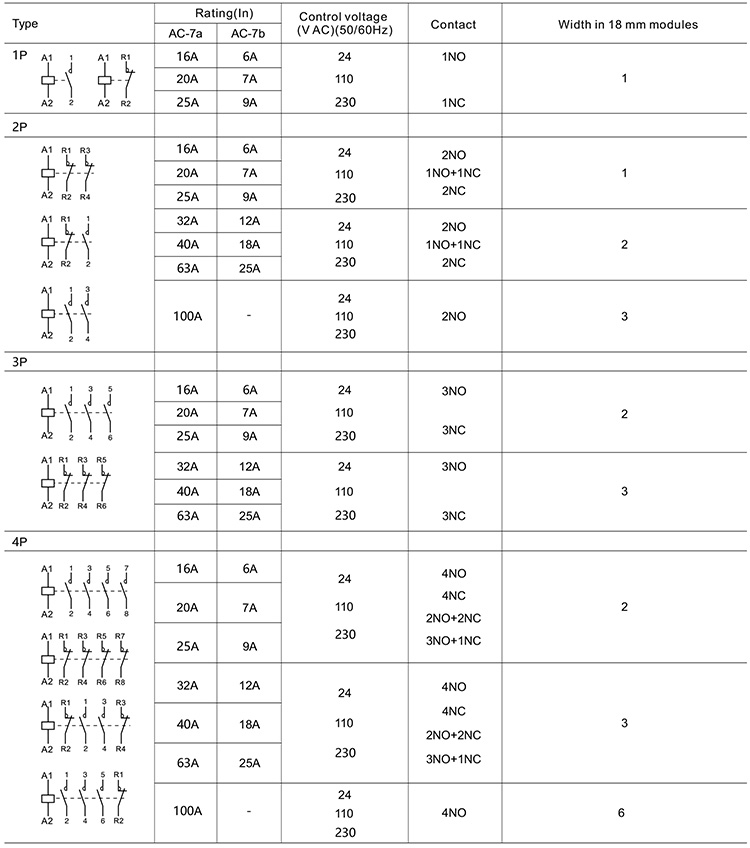

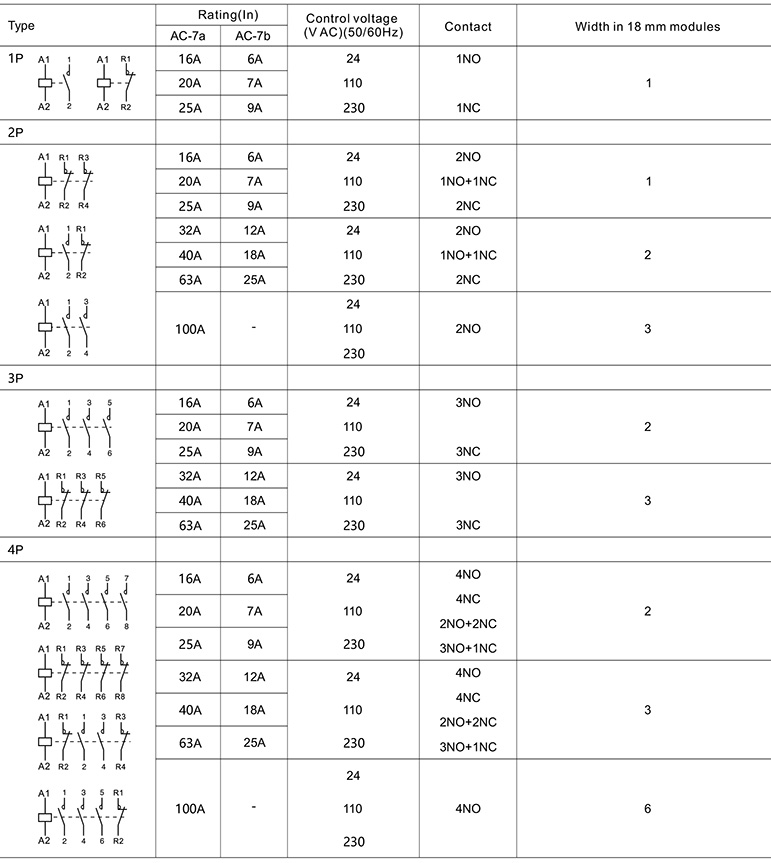

Specification BCH8 contactor-50Hz

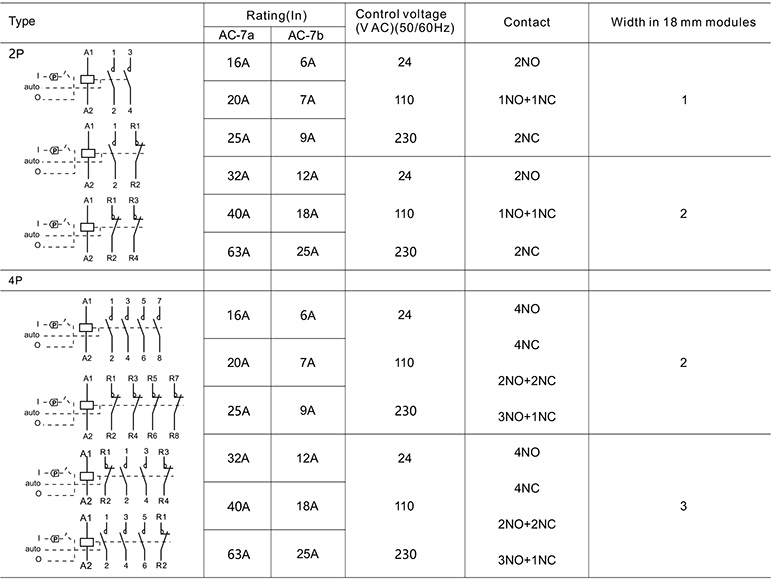

Specification BCH8 manual contactor-50Hz

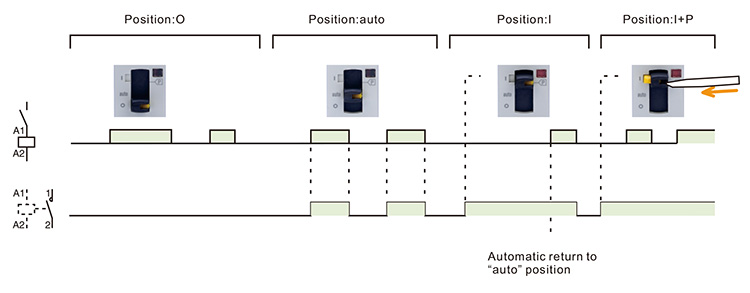

Operation(Manual control contactctor)

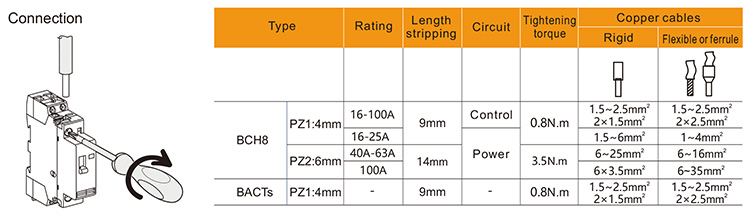

Technical data

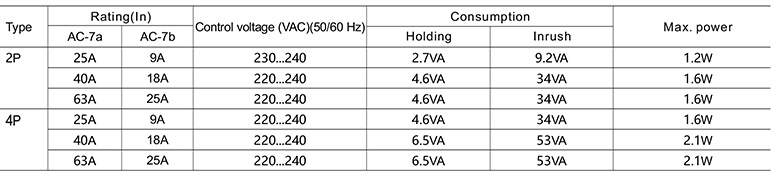

Consumption BCH8 contactors-50Hz
Consumption BCH8 manual control contactor-50Hz
Dimensions(mm)
