Busbar of pin and fork type ensures reliable and efficient terminal connection to MCB, RCCB and other modular electric devices.

● Standard segmented connecting pin saves labour tremendously
● High purified copper used to ensure perfect electricity conductivity
● Fire resistant material endures abnormal heating

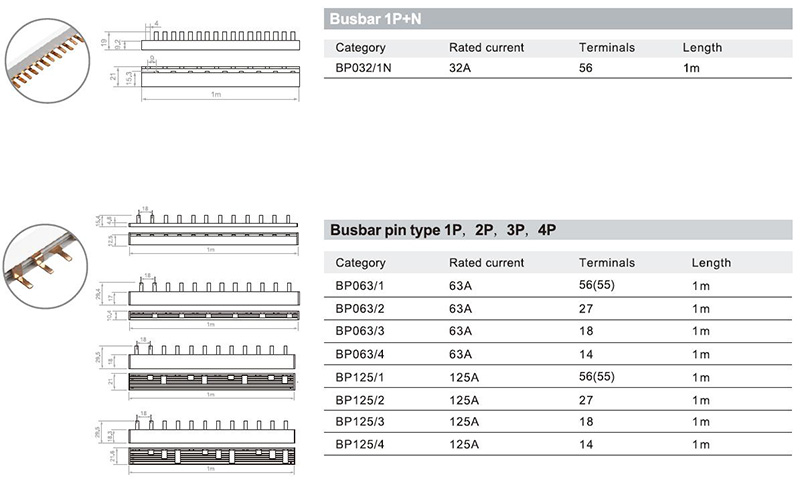

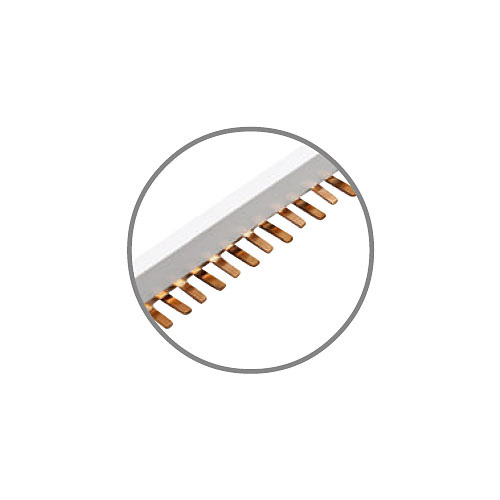

● Busbar 1P+N
   Shape: pin type
   Rated current: 32A
   Rated insulating voltage: 500V AC
   Flammability of plastic part : class 1

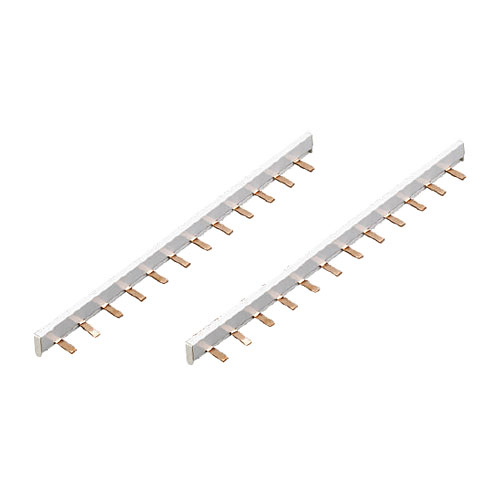

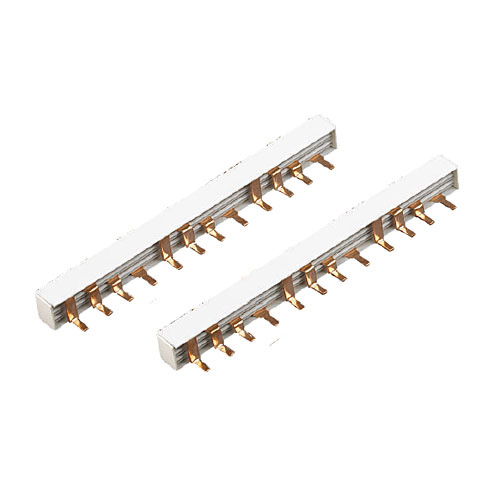

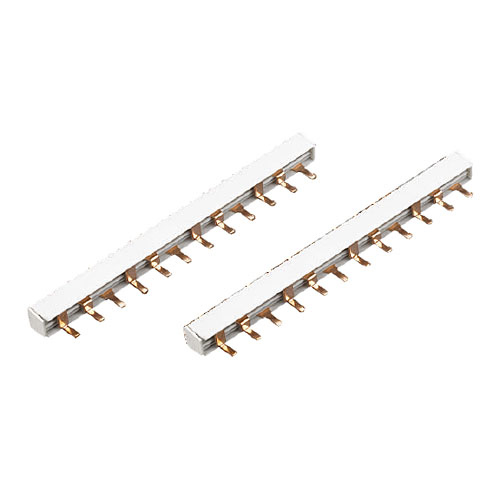

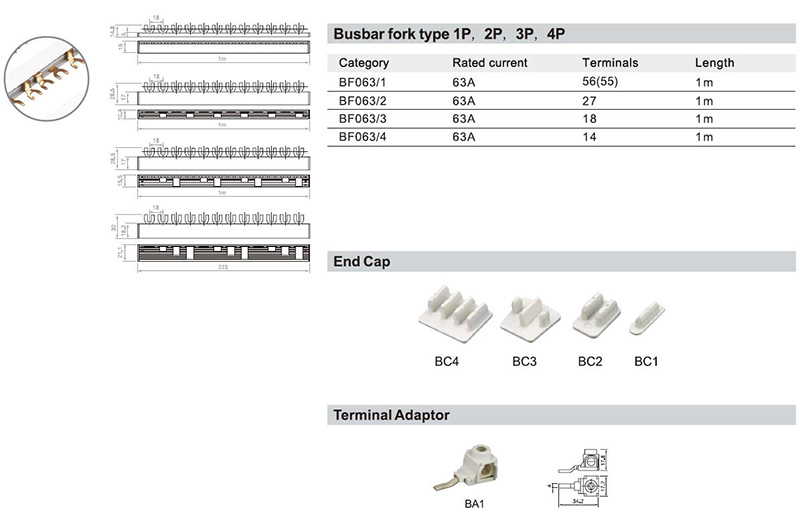

● Busbar 1P, 2P, 3P, 4P

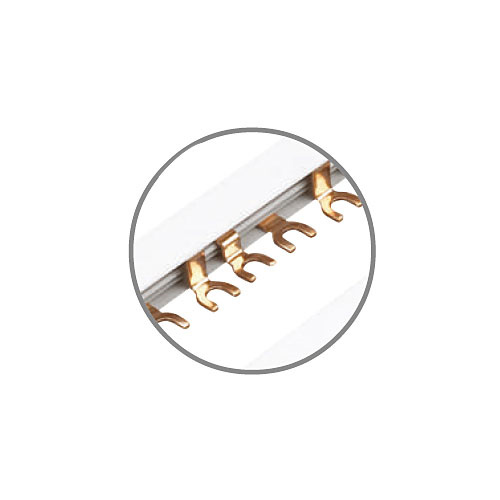

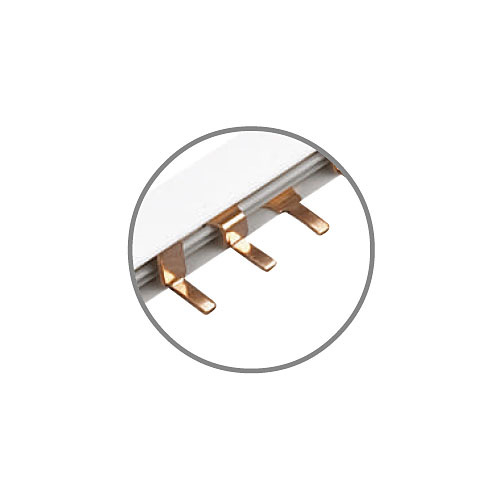

   Shape: pin type, fork type
   Rated current: 63, 125A
   Rated insulating voltage: 500V AC
   Flammability of plastic part: class 1

● End Cap
   Adaptable to full range busbars
   Used to insulate the exposed living parts at both ends of busbar

● Terminal Adaptor
   Applicable to busbar for terminal connection
   Fixed on busbar insulating part to secure high reliability
   Connection capacity: 25mm²
