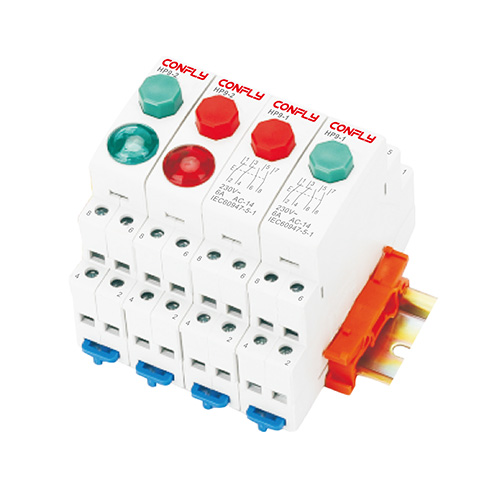

The Modular Pushbutton is applicable to circuit with rated voltage 230V AC and frequency 50/60Hz for controlling circuit.

● Compact design in modular size
● Easy installation

● Standard: IEC60947-5-1
● Extended button and spring return
● Rated operational voltage (Ue): 230V AC
● Rated operational current (Ie): 6A
● Conventional free air thermal current (Ith): 16A
● Utilization category: AC-14
● Rated frequency: 50/60Hz
● Rated impulse withstand voltage (Uimp): 4kV
● Colour
   red pushbutton, green pushbutton
   red pushbutton+red lamp
   green pushbutton+green lamp
● Connection terminal: pillar terminal with clamp
● Connection capacity: rigid conductor 2.5mm²
● Installation:
   On symmetrical DIN rail
